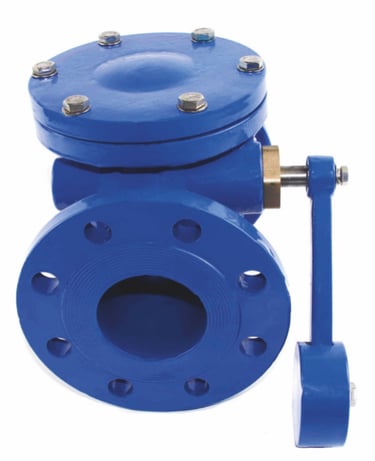

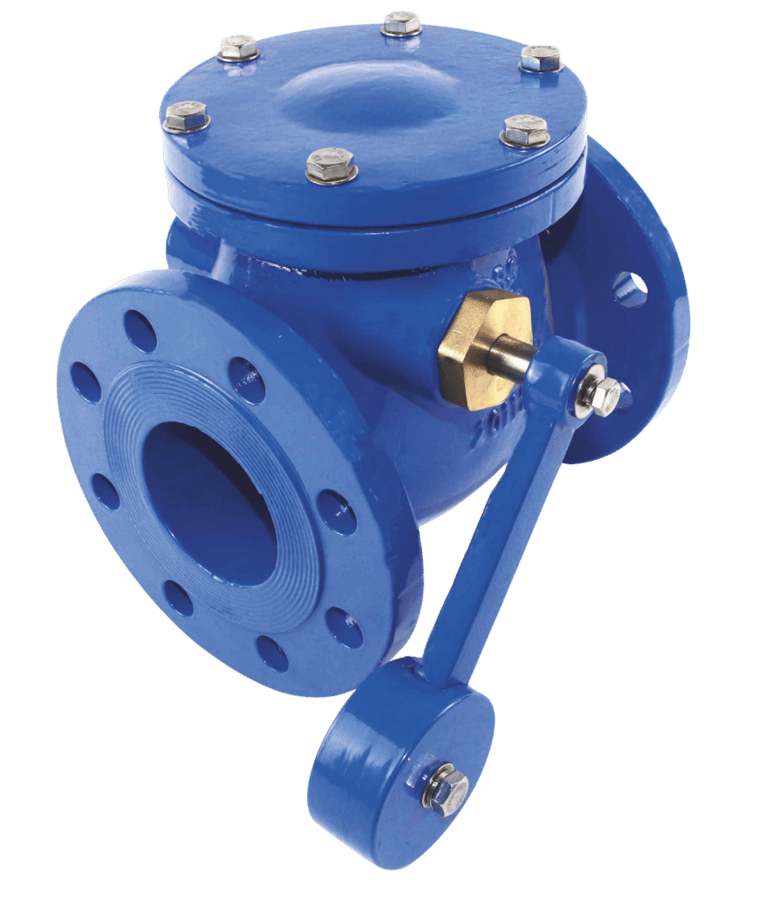

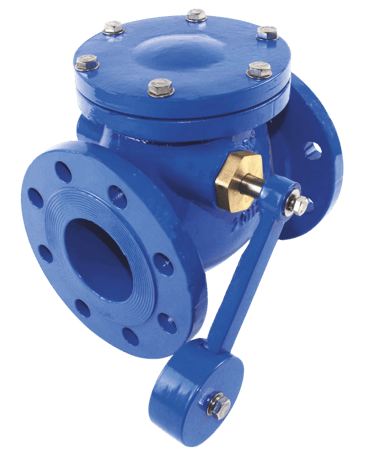

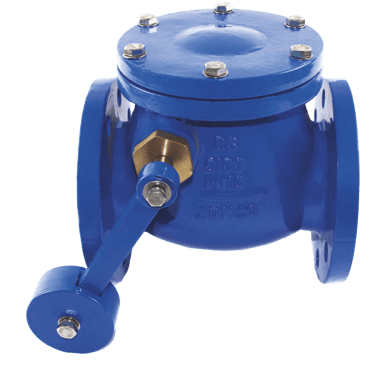

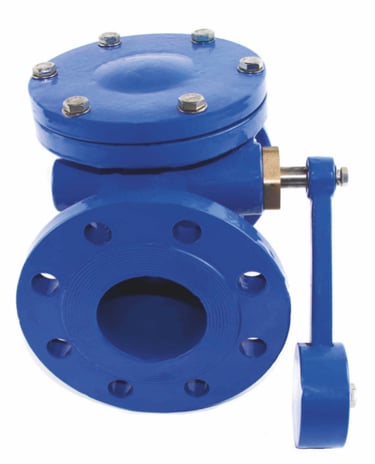

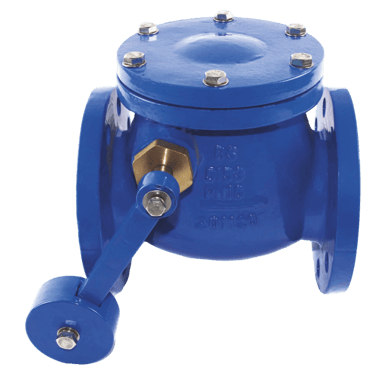

SWING CHECK VALVE

Simple & Reliable Backflow Prevention

IO Valves Swing Check Valves are designed to prevent reverse flow in water and wastewater pipeline systems. The valve operates through a hinged disc that opens with forward flow and closes automatically when flow stops or reverses, ensuring dependable non-return functionality. With a simple and robust construction, swing check valves are suitable for a wide range of general pipeline applications where reliable backflow prevention and minimal maintenance are required.

Material of Construction

Body: Ductile Iron

Disc: Ductile Iron Encapsulated with EPDM

Body Seat Ring: Brass

Disc Seat Ring: Brass

Washer/Nut/Cotter Pin/ Hinge Pin/ Plug/Bolt: SS 304

Coating: Epoxy Powder Coating with Min.250µ

• Effective prevention of reverse flow

• Simple hinged disc design for reliable operation

• Full bore flow path with low pressure loss

• Automatic closing without external power

• Suitable for horizontal and vertical installations

• Durable construction for long service life

• Low maintenance requirements

Key Features

Design & Testing Standards

• Flange Drilling: EN1092-2

• Medium: Water

• Operating Temperature: -10°C to +80°C

Size Range

DN 40 – DN 900

Pressure Rating

PN 10 / PN 16

Municipal Water Pumping Lines

Lift Irrigation Pumping Lines

Typical Applications

AXIAL FLOW NON-SLAM CHECK VALVE

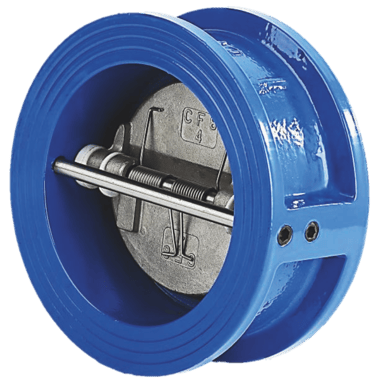

DUAL PLATE CHECK VALVE

Booster Pumping Stations

Water Utility Lines
